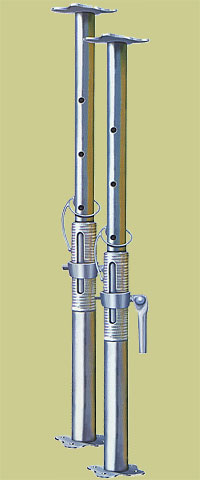

Pipe Support is featured
with reinforced functions by enabling even distribution
of load across the support,
Time required for its assembly is shortened
and dismantaling is very simple.
Funrther more its surface may be galvanized
to improve strength, safety and durability.
¢º Steel Pipe Support Specification
Model
NO.
Outer
tube (mm)
Inner
tube (mm)
Height
of Use
Permissible
Load
Weight
(Approx.) (kg)
Min
(mm)
Max
(mm)
Closed
(kg)
Extended
(kg)
V-1
1500
1800
1800
3300
2200
1700
12.3
V-2
1500
2000
2000
3500
2000
1500
12.5
V-3
1500
2400
2400
3900
1900
1300
13.6
V-4
1500
2700
2700
4200
1800
1200
14.8
1. Outer tube :
Used STK - 410 carbon steel tubes as materials
for structural purpose.
Dimension : ¥õ 60.5 ¡¿ 2.0 mm
2. Inner tube :
Used STK - 510 carbon steel tubes as materials
for structural purpose.
Dimension : ¥õ 48.6 ¡¿ 2.2 mm
3. Base Plate :
STK - 410 steel plate its 6mm thickness
and outer tube by firm welding.
4. Screw :
Used JIS G 3452 grade threaded pipe of it's
¥õ 60.5 out dia. and 3.2mm thickness.
It had slot hole which was able to through it by the pin,
and was welded at outer tube.
5. Adjusting Nut & Handle :
Used STK - 41 carbon steel tubes and had
a bracket for jointing between the handle and the nut.
6. Pin & Chain :
¥õ 12 round bar.
